• DC-DC Converters PCB mounting

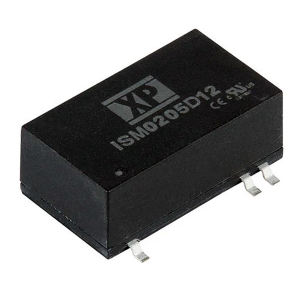

  • ISM02 Series

    Features

    • International medical safety approvals
    • Single & dual unregulated outputs
    • Compact SMD package
    • 4kV VAC reinforced isolation
    • 1 x MOPP at 300 VAC
    • 2 μA patient leakage current
    • Operating temperature -25 °C to +105 °C
    • Full load to 60°C convection
    • Tape & reel package available
    • 3 year warranty
    The ISM02 provides a compact cost effective SMD solution for healthcare applications providing 1 MOPP, 2 MOOP and IEC60601-1 compliance. Features include a high operating temperature, low leakage current, reinforced insulation and short circuit protection.

    Inquiry Info. PDF

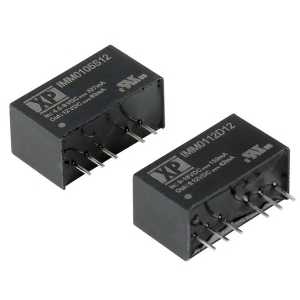

  • IMM01

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • 2 µA Patient Leakage Current
    • SIP7 Package
    • -20 °C to +100 °C Operation
    • Full Load at 60 °C Ambient
    • 1500 VAC Isolation, 1 MOPP
    • MTBF 1 MHrs
    • 3 Year Warranty
    IMM01 Series 1 Watt, SIP7 plastic package, 2:1 5V or 12V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVAC isolation. Remote On/Off

    Inquiry Info. PDF

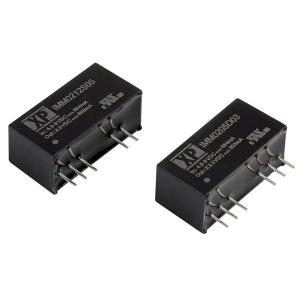

  • IMM02

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • SIP8 Package
    • -20 °C to +100 °C Operation
    • Full Load at 60 °C Ambient
    • 1500 VAC Isolation
    • 1 x MOPP at 250VAC
    • MTBF 1 MHrs
    • 3 Year Warranty
    IMM02 Series 2 Watts, SIP8 plastic package, 2:1 5V or 12V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVAC isolation. Remote On/Off

    Inquiry Info. PDF

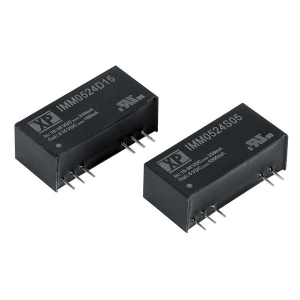

  • IMM05 Series

    Features

    • Regulated Single & Dual Outputs from 3.3 VDC to ±15 VDC
    • World Wide Medical Certification
    • 2:1 Input Range
    • Ultra Compact SIP9 Package
    • 1500 VAC Isolation
    • 1 x MOPP at 250VAC
    • Remote On/Off
    • -20 °C to +100 °C Operation
    • Full Load to +60 °C
    • 3 Year Warranty
    The IMM05 series of dc-dc converter offers an ultra compact 5W solution facilitating an isolation barrier between input and output with low leakage current required for medical BF & CF applications.

    Inquiry Info. PDF

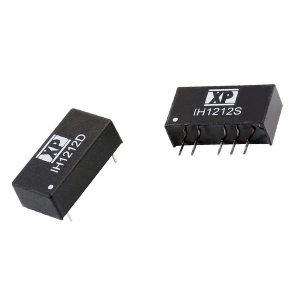

  • IH

    Features

    • Unregulated dual outputs
    • ±10% input range
    • Dual outputs ±3.3 to ±24VDC
    • SIP7 or DIP14 package
    • 1.0kVDC isolation, options up to 6.0kVDC
    • -40°C to +85°C operating temperature
    • 3 year warranty
    IH Series 2 Watts, SIP7 or DIP14 plastic package, 5V, 12V or 24V DC ±10% Input, Dual unregulated output versions from 3.3V to 24V DC. 1kVDC isolation, options up to 6kVDC.

    Inquiry Info. PDF

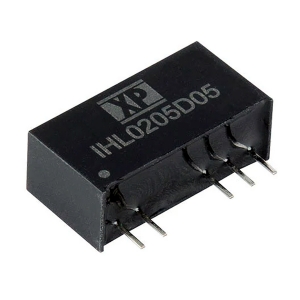

  • IHL02

    Features

    • Unregulated single & dual outputs
    • ±10% input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • SIP7 package
    • 5.2kVDC functional isolation
    • 250VAC working voltage
    • Bipolar outputs for MOSFET & IGBT drives
    • Common mode transient immunity (CMTI) 20kV/μs
    • -40°C to +95°C operation
    • Full load to +65°C ambient
    • 3 year warranty
    IHL02 Series 2 Watts, SIP7 plastic package, 5V, 12V, 15V or 24V DC ±10% Input, Single and dual unregulated output versions from 3.3V to 15V DC. 5.2kVDC isolation.

    Inquiry Info. PDF

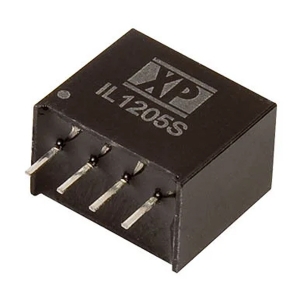

  • IL Series

    Features

    • Single Output
    • SIP Package
    • 1000 VDC Isolation
    • Optional 3000 VDC Isolation
    • MTBF >1.2 MHrs
    • 40 °C to +85 °C Operation
    • 3 Year Warranty

    Inquiry Info. PDF

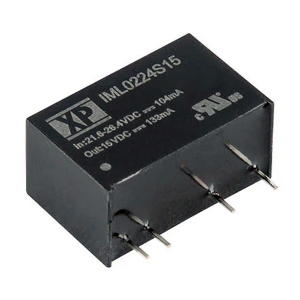

  • IML02

    Features

    • World Wide Medical Approvals
    • Single and Dual Outputs
    • SIP7 Package
    • -40 °C to +85 °C Operation
    • Full Load at 85 °C Ambient
    • 4000 VAC Isolation, 1 x MOPP
    • 2 μA Patient Leakage Current
    • MTBF 2.5 MHrs
    • 3 Year Warranty
    IML02 Series 2 Watts, SIP7 plastic package, 5V, 12V, 15V or 24V DC ±10% Input, Single and dual unregulated output versions from 3.3V to 15V DC. 4kVAC isolation.

    Inquiry Info. PDF

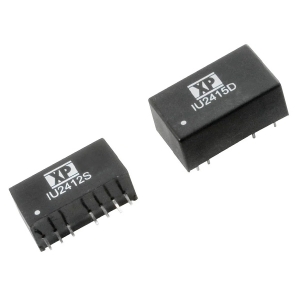

  • IU Series

    Features

    • Regulated Single & Dual Output
    • Wide 2:1 Input Range
    • SIP or DIP Package
    • 1000 VDC Isolation (Optional 3000 VDC)
    • Continuous Short Circuit Protection
    • 3 Year Warranty

    Inquiry Info. PDF

  • ISU02 Series

    Features

    • Regulated single & dual output
    • Wide 4:1 input range
    • Compact SMD package
    • 1500VDC isolation
    • Operating temperature -40°C to +95°C
    • ITE safety approvals
    • Remote on/off
    • Tape & reel package available
    • Optional water washable versions
    • 3 year warranty
    The ISU02 series offers a compact surface mount DC-DC module suitable for industrial applications with an operating temperature of 70°C at full load. Features include remote on/off, short circuit protection, overload protection and under voltage protection.

    Inquiry Info. PDF

Total of 121 results
