• DC-DC Converters PCB mounting

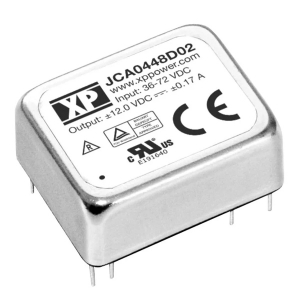

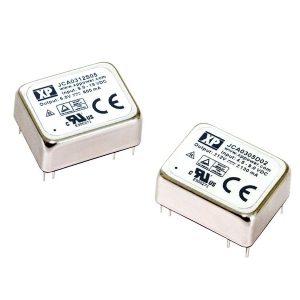

  • JCA04

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • 1.0” x 0.8” metal case
    • 1.5kVDC isolation
    • -40°C to +100°C operating temperature
    • Full power to +85°C
    • 3 year warranty
    • 3 year warranty
    JCA04 Series 4 Watts, 25.4 x 20.3mm metal case, 2:1 5V, 12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation

    Inquiry Info. PDF

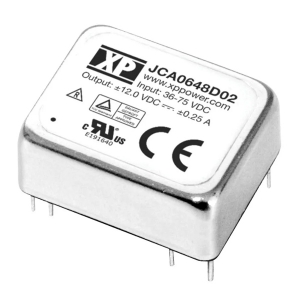

  • JCA06

    Features

    • Regulated single & dual outputs
    • 2:1 input range
    • Single outputs 3.3 to 15VDC
    • Dual outputs ±5.0 to ±15VDC
    • 1.0” x 0.8” metal case
    • 1.5kVDC isolation
    • -40°C to +100°C operating temperature
    • Full power to +85°C
    • 3 year warranty
    JCA06 Series 6 Watts, 25.4 x 20.3mm metal case, 2:1 5V, 12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 1.5kVDC isolation

    Inquiry Info. PDF

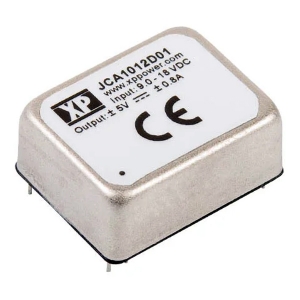

  • JCA10 Series

    Features

    • Compact 1.0” x 0.8” Metal Package
    • Industry Standard Pin Out
    • 2:1 Input Range
    • Single & Dual Outputs
    • Operating Temperature -40 °C to +100 °C
    • UL, CB, & TUV Approval
    • 3 Year Warranty

    Inquiry Info. PDF

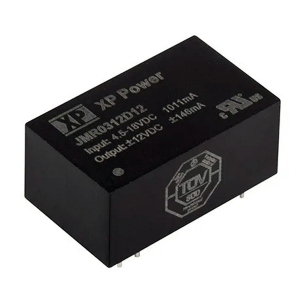

  • JMR03

    Features

    • Regulated single & dual outputs
    • World wide medical certification
    • 4:1 input range
    • Compact DIP16 package
    • 5.0kVAC isolation
    • 2 x MOPP at 250VAC working voltage
    • Remote On/Off
    • -40°C to +90°C operation
    • 3 year warranty
    JMR03 Series, 3.5 Watts, DIP16 plastic package, 4:1 12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 5kVAC isolation. Remote On/Off.

    Inquiry Info. PDF

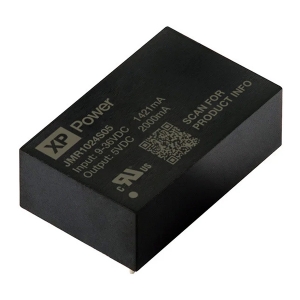

  • JMR10

    Features

    • Regulated single & dual outputs from 5 to 30VDC
    • 4:1 input range
    • Ultra-compact DIP24 PCB mount package
    • Low no-load power
    • 10% trim in single output versions
    • IEC60601-1 medical safety agency approvals
    • 5kVAC reinforced isolation
    • 2 x MOPP at 250VAC
    • 2µA patient leakage current
    • Remote On/Off
    • Short circuit, overload & overvoltage protection
    • -40°C to +100°C operating temperature
    • 3 year warranty
    JMR10 Series 10 Watts, DIP24 plastic package, 4:1 12V, 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 5kVAC isolation. Remote On/Off.

    Inquiry Info. PDF

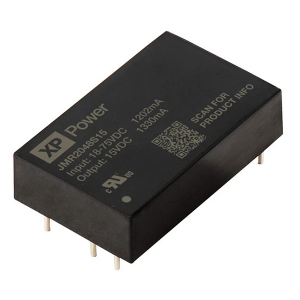

  • JMR20

    Features

    • Regulated single & dual outputs from 5 to 30VDC
    • 4:1 input range
    • Compact 40.6 x 25.4mm (1" x 1.6") PCB mount
    • package
    • Low no-load power
    • 10% trim on single output versions
    • IEC60601-1 medical safety approvals
    • 5kVAC reinforced isolation
    • 2 x MOPP at 250VAC
    • 2µA patient leakage current
    • Remote On/Off
    • Short circuit, overload & overvoltage protection
    • -40°C to +100°C operating temperature
    • 3 year warranty
    JMR20 Series 20 Watts, 40.6 x 25.4 plastic package, 4:1 24V or 48V DC Input, Single and dual regulated output versions from 3.3V to 15V DC. 5kVAC isolation. Remote On/Off.

    Inquiry Info. PDF

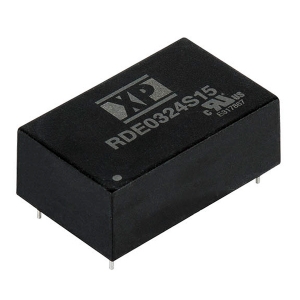

  • RDE03 Series

    Features

    • Regulated Single & Dual Output
    • Wide 4:1 Input Range
    • Covers 72 & 110 VDC for Rail Applications
    • 3000 VAC Isolation Reinforced
    • Operating Temperature -40 °C to +105 °C
    • Full Power at 80 °C
    • Complies with EN50155 and IEC60571
    • Meets EMC Standard EN50121-3-2
    • No External Filter Required
    • 3 Year Warranty
    The RDE03 series provides a compact DC-DC solution featuring a robust construction for the demands of railway applications.

    Inquiry Info. PDF

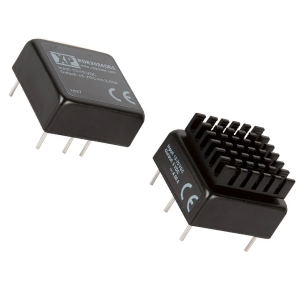

  • RDE20 Series

    Features

    • Regulated Single & Dual Output
    • 24-48 VDC & 72-110 VDC nominal inputs for Railway Applications
    • 3000 VDC Isolation
    • High Efficiency
    • EN50155 Certified for Railway Applications
    • EN50121-3-2 with External Components
    • Remote On/Off
    • Output Voltage Trim ±10%
    • Operating Temperature -40 °C to +100 °C
    • Full Power to +55 °C
    • 3 Year Warranty
    The RDE20 series provides a comprehensive wide DC input voltage range covering all requirements of the railway standard EN50155. The product features a robust design tested to railway standards and includes a remote on /off function, output voltage trimming, protection against short circuit, undervoltage lockout, overload and overvoltage.

    Inquiry Info. PDF

  • JTC04-06 Series

    Features

    • 4:1 Input Range
    • DIP 24 Metal Package
    • Operating Temperature 40 °C to +100 °C
    • Single & Dual Outputs
    • Continuous Short Circuit Protection
    • 1500 VDC Isolation, 3500 VDC Option
    • 3 Year Warranty

    Inquiry Info. PDF

  • IEQ05 Series

    Features

    • Regulated Single & Dual Output
    • Wide 4:1 Input Range
    • Compact SIP8 Package
    • 1500 VDC Isolation
    • Operating Temperature -40 °C to +90 °C
    • Remote On/Off
    • 3 Year Warranty

    Inquiry Info. PDF

Total of 121 results
